FW2-PIRCAM-IN / PIRCAM-WHT-LED-8F


FW2-PIRCAM-IN / PIRCAM-WHT-LED-8F

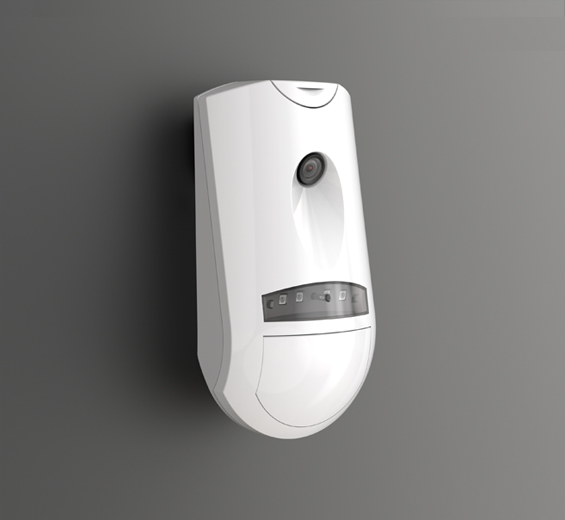

Crow’s Indoor PIRCAM is a two-way wireless motion detector with built-in CMOS high quality color camera. It provides an ideal solution for video verification via pictures transmitted to a CMS or to your mobile phone via CrowPro™ Apps. Both users and CMS can verify alarms day and night by viewing real-time images captured by Crow’s PIRCAM for fast and accurate response to real alarm events.
It can be configured Over-The-Air.
Detection Method | Quad Pyro Element Sensor & CMOS Camera |
Optics | Fresnel Optics |
Communication Protocol | Freewave2™ two-way ISM GFSK with 5 freq. & LBT |
Operating Frequencies | 868MHz or 916MHz |
Identification | Unique ID serial number – 24 bit |
CAM Resolution | VGA or QVGA |
CMOS Sensitivity | 16VLux/sec |
Picture Mode & Resolution | Configurable VGA / QVGA |
Detection Range | 12 m |
Events Transmission | Alarm, Tamper, Supervision, Low Bat, Keep Alive |
Supervision Time | 7 min by default (configurable between 1 to 30 min) |
Transmission Range | 500m open space |
Pet Immunity | Up to 25 kg |
Battery | 3 Lithium battery 3V CR123 |
Battery Life | Up to 5 years |
Current Consumption | Receive mode – 24mA Transmit mode – 38mA |
Tamper Switch | Front Cover and Wall Removal |
Operating Temperature | -10°C to +55°C |
Dimensions/Weight | 129.5mm x 67.4mm x 52mm / 200gr |
Compliance | EN50131 Security Grade 2 Class II |

FW2-PIRCAM-Indoor
Wireless Indoor PIR & Camera Detector
Declaration of Conformity

FW2-PIRCAM-WHT-LED
Wireless Indoor PIR & Camera Detector
Declaration of Conformity
